SKU: HRA42 Category:

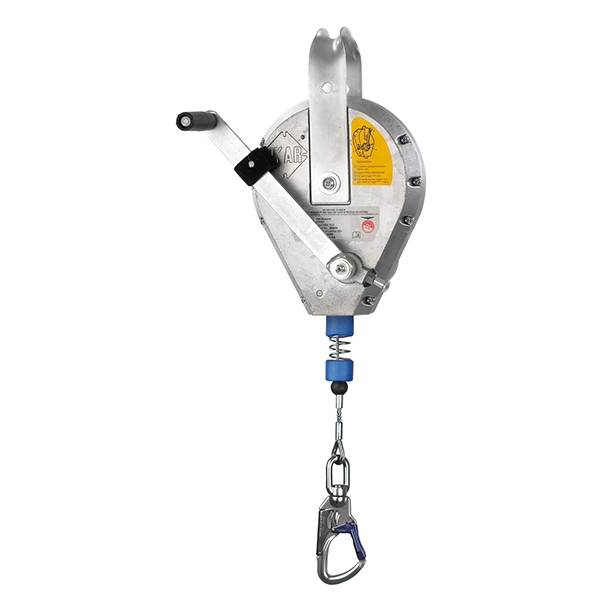

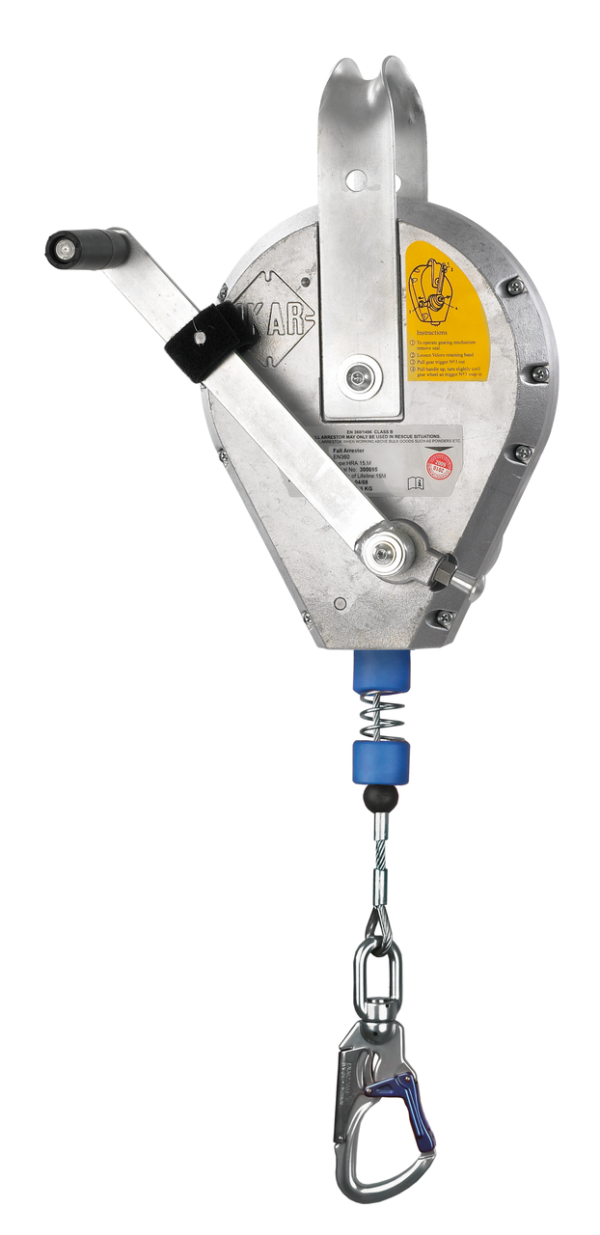

IKAR 42m HRA Fall Arrest and Recovery Device

£1110.65
ex. VAT
£1332.78
inc. VAT
Name(Required)
Preferred Communication Method
Hidden
SKU: HRA42 Category:

Description

  • Aluminium housing, with a galvanised steel cable lifeline
  • Conforms to EN360:2002
  • With release pin and two-way winding handle, to engage rescue/recovery mode
  • Fixed handle anchor attachment point
  • Attachment/connection handle or can be fitted to a davit or tripod via a bracket
  • Aluminium double action hook on end of lifeline to EN362

The IKAR Fall Arrest and Recovery Device can be fitted to the DB-A2 IKAR Rescue Tripod with the supplied bracket to protect the user while ascending and descending a vertical shaft i.e. confined space entry into a sewer system.

After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

The recovery system works very well when mounted on the tripod as it is held in position while the user operates the recovery handle. The fall arrest recovery mechanism is engaged by pulling a pin on the side of the block which in turn engages the winding handle.  This allows the operator to lift or lower a casualty post fall, or if they have become incapacitated in a confined space.

The HRA is not suitable for use over a leading edge and has not been edge tested.

Dimensions

42m: 740x370x235mm

Additional Information

Weight 40 kg
Brand
