Ankersmid Stationary Gas Conditioning System

Name(Required)
Preferred Communication Method
Hidden
This field is for validation purposes and should be left unchanged.
SKU: ASS 3xx Categories: ,

Description

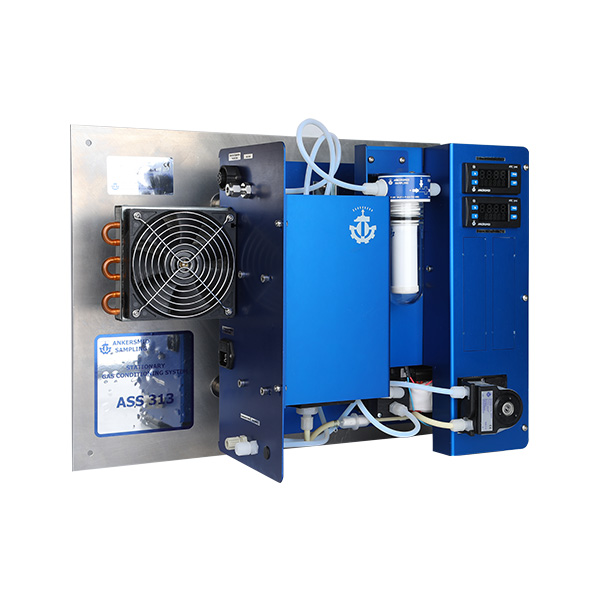

The Ankersmid stationary gas conditioning system ASS 3 series has been designed so that detailed gas analyses can be carried out continuously.

The entire gas conditioning system is mounted on a plate for an easy installation in cabinets, containers and any kind of walls.

Description

The stationary system is suitable for variable, discontinuous and continuous operation. The components built into the system can be used for standard applications. For special requirements please ask us for other solutions.

The heated sample line is to be mounted directly at the sample gas inlet connector made of stainless steel.

A ball-valve can be fitted to the inlet terminal of the portable system in order to calibrate analyser(s) with check gas. The amount of flow is determined by a sample gas diaphragm pump.

The sample gas pump (AMP) is activated automatically by means of an excess temperature contact on the cooler.

Optional flow meters with integrated needle valve are available.

The flow meters are built-in as the electronic controller and are visible from outside when the carrying case is closed.

This unique microprocessor controlled Peltier cooler is a powerful designed dew-point stabiliser. The dew-point is set at +4°C but can be changed at any value between +1°C and +15°C. The gas cooler is equipped with an innovative heat exchanger system.

Additional Information

Weight 0.3 kg
