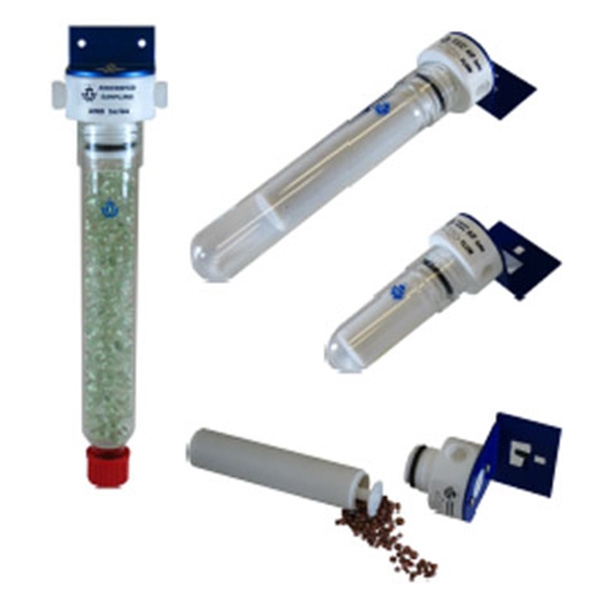

Ankersmid Adsorption Material Filter – AAM Series

Name(Required)
Preferred Communication Method
Hidden
This field is for validation purposes and should be left unchanged.

Description

AAM 051

Adsorption material filter type AAM 051, with (empty) filter cartridge.
Materials: PVDF (head), PTFE (cartridge), Viton® (o-ring), Duran® glass (body).
Connection: G 1/4″f (gas inlet, gas outlet). Cartridge length: 75mm.
Incl. bracket for wall-mounting, material: aluminium anodized

AAM 052

Adsorption material filter type AAM 052, with (empty) filter cartridge.
Materials: PVDF (head), PTFE (cartridge), Viton® (o-ring), Duran® glass (body).
Connection: G 1/4″f (gas inlet, gas outlet). Cartridge length: 150mm.
Incl. bracket for wall-mounting, material: aluminium anodized

AAM 053

Adsorption material filter type AAM 053, with bottom frit to fill with adsorption materials or glass balls. Length: 120mm.
Materials: PVDF (head), Viton® (o-ring), Duran® glass (body, frit). Connection: GL25-8 (gas inlet), G 1/4″f (gas outlet).
Incl. bracket for wall-mounting, material: aluminium anodized

AAM 054

Adsorption material filter type AAM 054, with bottom frit to fill with adsorption materials or glass balls. Length: 240mm.
Materials: PVDF (head), Viton® (o-ring), Duran® glass (body, frit). Connection: GL25-8 (gas inlet), G 1/4″f (gas outlet).
Incl. bracket for wall-mounting, material: aluminium anodized

AAM 810

Adsorption material Active-coal, quantity: 1kg

AAM 820

Adsorption material Purafil II, quantity: 1kg

AAM 830

Adsorption material Silicagel. quantity: 1000ml
