ARMS2 – Refrigerant Leak Detection System

Name(Required)
Preferred Communication Method
Hidden
This field is for validation purposes and should be left unchanged.

Description

The ARMS 2 – Refrigerant Leak Detection System is one of the most popular fixed refrigerant gas leak detection sensor used to satisfy the requirements of the F-Gas Regulation. The ARMS2 offers dual multi-gas detection of CO2 , NH3 or HFC’s of up to 32 points a1-cbiss have over 20 years experience in the design, manufacturing and installation of custom built gas monitoring and sampling systems.

Industry Requirements – When to Fit Automatic Refrigerant Leak Detection

Under the current F-Gas Regulation it is mandatory for sites with an overall refrigerant charge of 500 tonnes CO2e or more to install a fixed refrigerant leak detection system. Read the latest on the F-Gas legislation

Mass of gases commonly used in refrigeration, air conditioning or fire protection equivalent to 500 tonnes of carbon dioxide

F gas Mass of gas equivalent to 500 tonnes of carbon dioxide (kg)
HFC 23 34
HFC 508B 38
HFC 507A 125
HFC 404A 127
HFC 434A 154
HFC 227ea 155
HFC 422D 183
HFC 438A 221
HFC 410A 239
HFC 407C 282
HFC 134a 350

The Automatic Refrigerant Leak Monitoring System

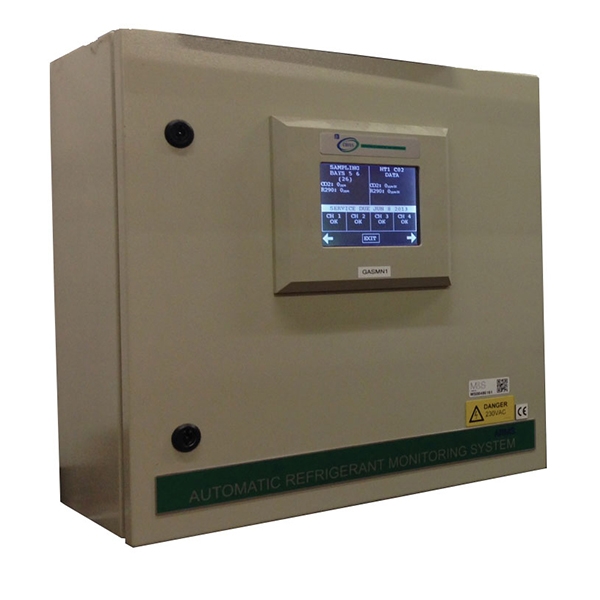

Leak detection for F-Gas compliance can be achieved with a fixed refrigerant gas leak detection system from a1-cbiss. By definition, the ARMS 2 – Fixed Refrigerant Leak Detection System is a calibrated mechanical, electrical or electronic device for detecting leakage of fluorinated greenhouse gases, which on detection, alerts the operator. ‘Up to 32 individual channels can be supplied’ The ARMS 2 Refrigerant Leak Detection system utilises multi-gas infrared sensor technology and can be supplied as an 8, 16, 24 or 32 channels model, to provide wide area refrigerant leak detection for the simultaneous measurement of multiple gases. In addition to these features, the system also features a range of flexible I/O options as standard and fully configurable settings, accessed via the touch screen display.

Additional Information

Weight 3 kg
