GMI Auto Bump/Calibration Station

Name(Required)
Preferred Communication Method
Hidden

Description

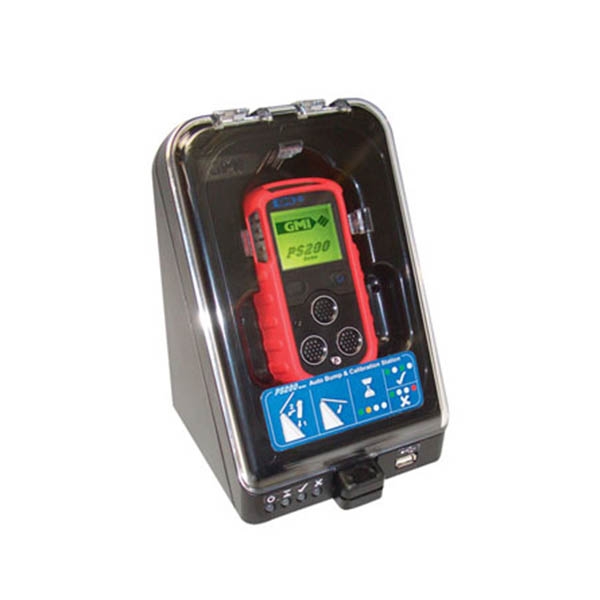

The multifunctional Auto Bump/Calibration Station from GMI enables data to be easily retrieved from the PS200 portable gas detector. Once the PS200 is placed in the dock it can be bump tested, calibrated and charged.

The ABC automated test station is easy to use, with a high performing user friendly design

• Simple operation using 6 step guide
• Full bump, calibration and charging options
• Bump/calibration results storage
• Stand-alone, PC and ethernet options

Standalone

Data can be easily retrieved using specific software in a user friendly time logged format. This gives you the ability to create and print your personalised calibration certificate.

PC

Allows easy configuration (bump test or calibration) of Auto Bump & Calibration Station and allows all results to be automatically stored to a database on the PC.

Ethernet

Same as PC except multiple units can be connected to a network allowing one PC to control and receive data.

Download to Memory Sticks

With the ABC Station you can download all data readings to a memory stick, allowing you to transfer the results of the bump and calibration tests to any compatible PC or Laptop. The new configuration files are already on the memory stick so there is no need to pre install. A memory stick is provided as standard.

Exhaust

The ABC Station also comes with an exhaust which pushes gas out of the station to help reduce the smell of gas that comes with any calibration station. The key advantage of this station is that you can attach it to an external extractor fan, to further reduce the smell of gas in the room your ABC Station will be based in.

What do you get when you buy this station?

Together with your station, you will receive a CD with User Instructions to introduce you to the device, as well as a simple Quick Operation Guide which you can carry with you at all times.

Technical Specification

• Size: 200 x 140 x 135mm
• Weight: 1.2kg
• Interfaces: Standalone /USB /Ethernet
• LED Indicators:
– Power (Green)
– Testing (Yellow)
– Pass (Green)
– Fail (Red)
• Testing Time:
– Bump Test 60 secs
– Calibration Test 90 secs
• Data Storage: >6000 Bump /Calibration results and between loads
• Power Supply: 12V dc, 2A
• Charging Time: <4 hrs
• Operating Temperature: -10oC to 40oC
• Gas Ports: 3 (Air, Combi Gas & Exhaust)

Additional Information

Weight 1.3 kg
Brand

Configuration
