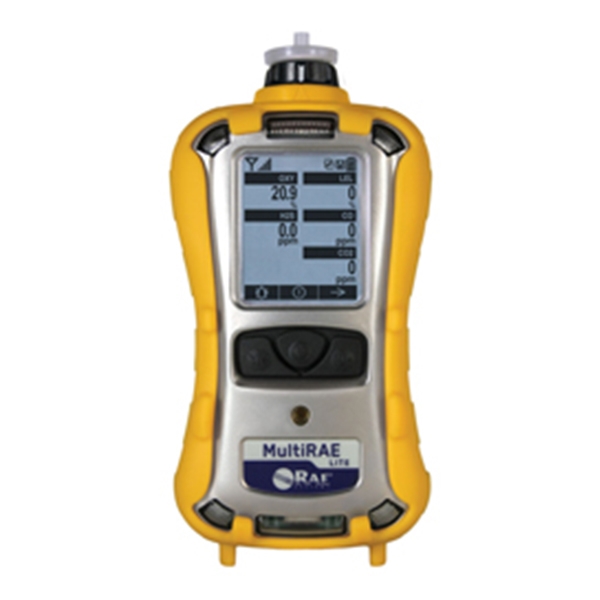

MultiRAE Lite Gas Detector

Name(Required)
Preferred Communication Method
Hidden
This field is for validation purposes and should be left unchanged.

Description

The MultiRAE Lite is an optimal one-to-six-gas monitoring solution for personal protection (including confined space entry) and multi-gas leak detection applications.

The MultiRAE Lite can be configured to exactly meet the needs and compliance requirements of various countries, industries, and applications.

Models PGM-6208 and PGM-6208D

Choose your configuration

Part Number Sampling Method Configuration Wireless Option
MAA3-A2C112E-020 Pumped 10.6 eV PID / LEL / H₂S / CO / O₂ Non-Wireless
MAA3-B8C102E-020 Pumped CO₂ / LEL / CO / O₂ Non-Wireless
MAA3-A2C1R3E-020 Pumped 10.6 eV PID / LEL / CO + H₂S / SO₂ / O₂ Non-Wireless
MAA3-0EC1123-020 Pumped O₂ / LEL / H₂S / CO / SO₂ Non-Wireless
MAA6-B8C101E-020 Diffusion CO₂ / LEL / H2S / O₂ Non-Wireless



Key Features:

  • Real-time instrument readings and alarm status from any location
  • Unmistakable five-way local and remote wireless notification of alarm conditions
  • 30 interchangeable sensor options, including PID for VOCs, NDIR and catalytic for combustibles, and NDIR for CO2
  • Intelligent sensors store calibration data, so they can be swapped in the field
  • Large graphical display with easy-to-use, icon-driven user interface
  • Continuous datalogging (6 months for 5 sensors, 24×7)

Monitor-Only Configuration Includes:

  • MultiRAE Lite monitor with sensors, battery and wireless options as specified, and protective rubber boot and filter(s) installed
  • Continuous datalogging (6 mo’s for 5 sensors @ 1-min. intervals)
  • Travel charger / PC communications adapter
  • PC communication cable
  • AC adapter
  • Calibration adapter
  • Alkaline battery adapter
  • Toolkit with Hex tool and Phillips screwdriver
  • Quick Start Guide
  • CD with documentation
  • ProRAE Studio II Instrument Configuration & Data Management Software
  • Calibration and test certificate
  • Warranty / registration card

The pumped model of MultiRAE Lite also includes:

  • Built-in pump
  • Belt clip installed
  • 3 spare external filters
  • PID sensor cap removal tool
